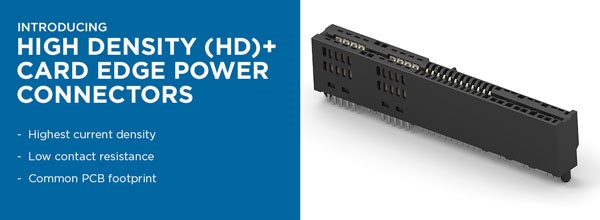

New from TE: Introducing High Density+ Card Edge Power Connectors



View this email as a web page





Our new high density (HD)+ card edge connector delivers the highest current density in the market at 15A/2.54mm and supports 2000-3000W power supplies for data center equipment.



A unique design with dual layers of DC power contacts and pass-through pins provide multiple mating/contact points to the PCB which helps ensure low contact resistance and supports higher current. The signal pitch is 1.27mm, which is compatible with common industry PCB footprint designs.



View Product
View Materials
View eCard | 中文



Target Markets
·    Data communications
Applications
·    Servers

·    Switches

·    Storage devices

Key Benefits
·    Delivers the highest current density of any card edge connector in the market at 15A/2.54mm

·    Supports 2000-3000W power supplies for data center equipment

·    Unique dual layer design of DC power contacts and pass-through pins provides multiple mating/contact points to the PCB which helps ensure low contact resistance at 1 mΩ max

·    Meets common industry PCB footprint designs with 1.27mm signal pitch, 5.08mm power contact pitch

·    Provides lower temperature rising and lower power loss on the connector

·    Compact and cost-effective with common power and signal contact modules

·    Flexible configurations available with different contact quantities

·    Better scalability (AC & DC, low power & high power)

·    Excellent mechanical and electrical performance

·    Easy mating/un-mating with proper retention force

·    Mating force 80N max with nominal mating PCB

Questions to Ask During Design-In
·    What current density does your application require?

·    What is the signal pitch in the PCB footprint of your application?

·    What is the operating temperature in your application?

·    What is the mating force requirement in your application?

·    Do you need a footprint compatible with other vendors?

·    Is UL certification/ROHS/HF necessary?

Market Information
·    Amphenol FCI – eHPCE® Enhanced High Power Card Edge Connector

·    Jonhon – power card edge connectors
